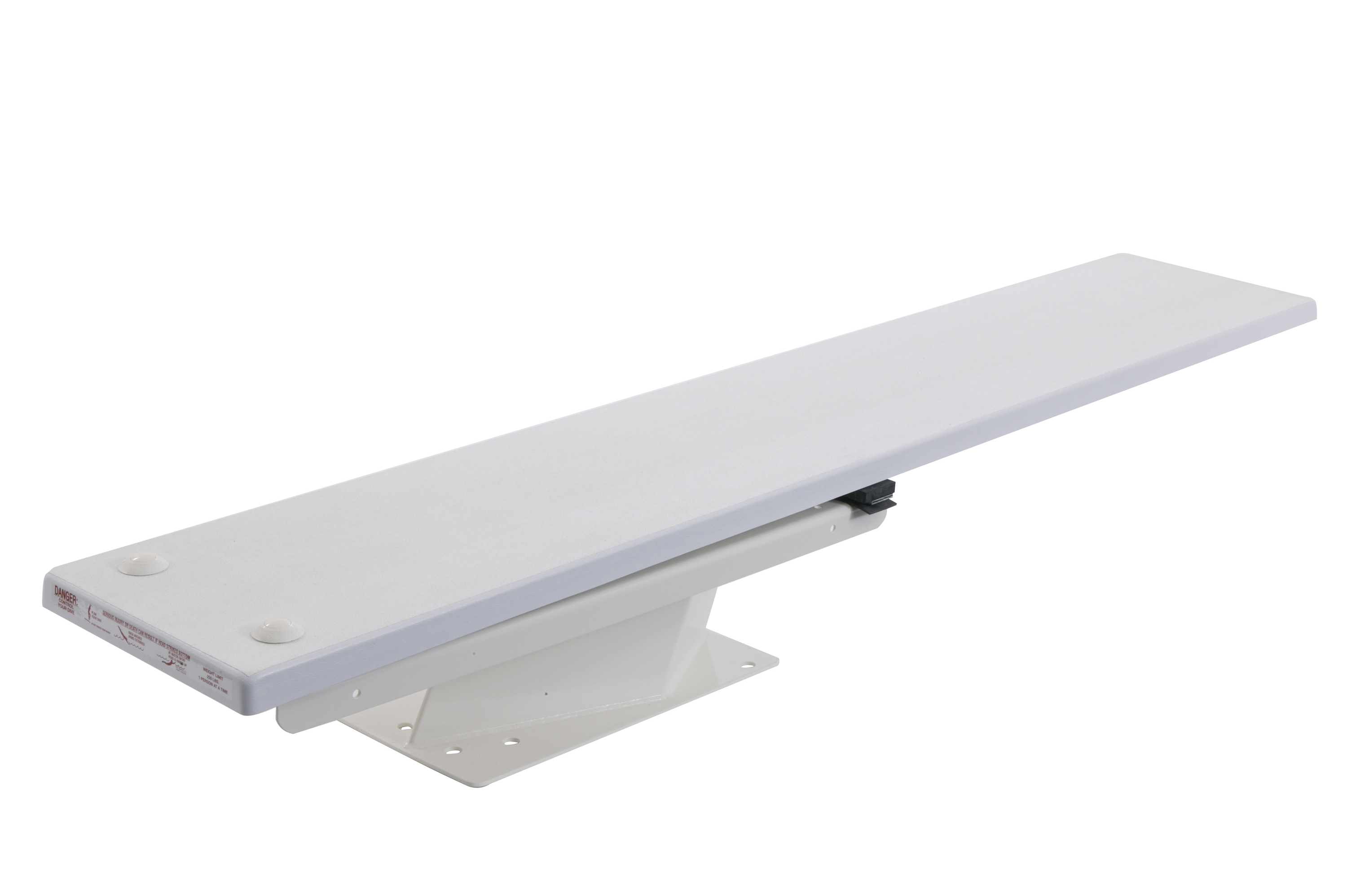

• Thumbnail for Steel Pool Meter Stands

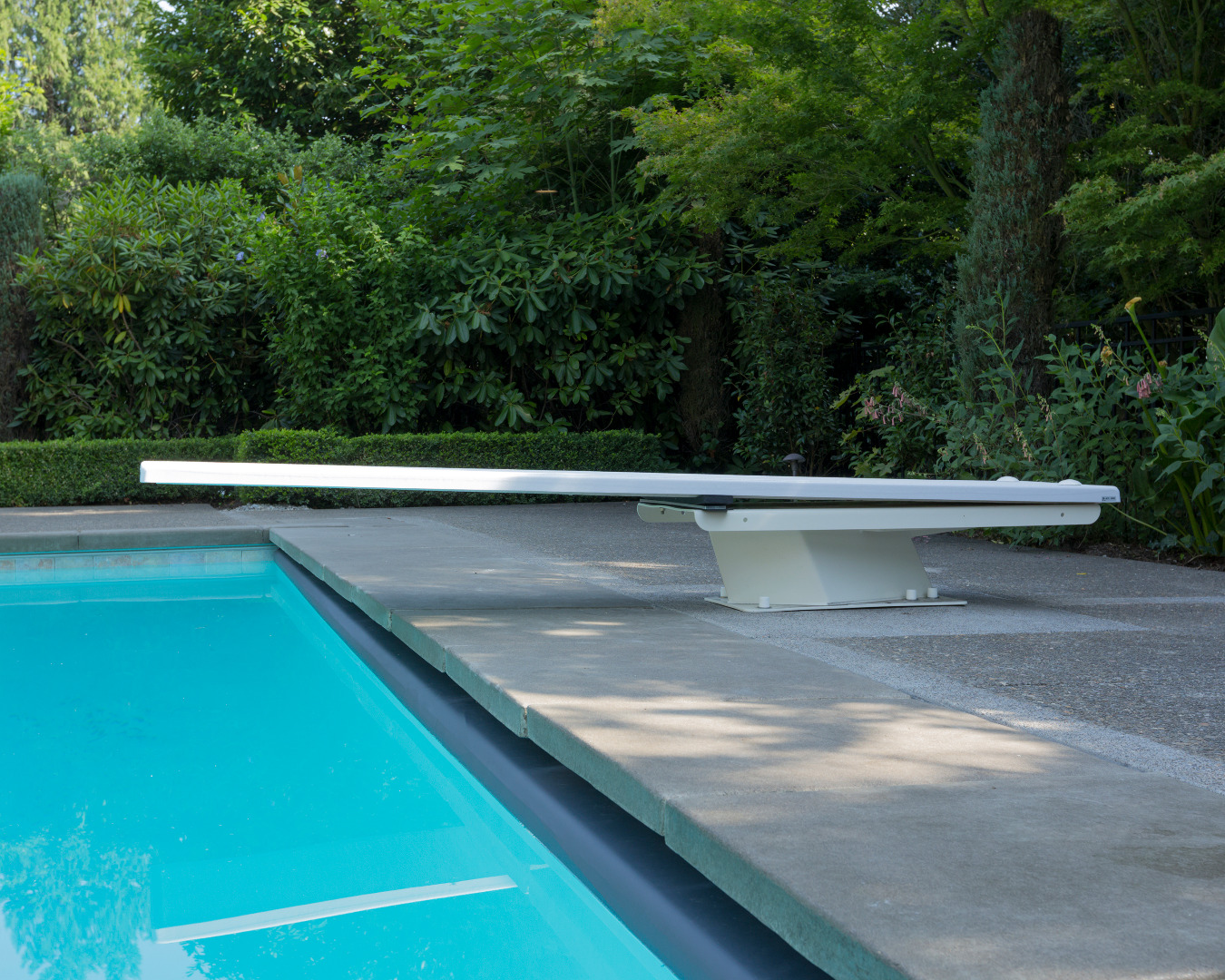

  • Thumbnail for A steel meter diving stand in a typical installation

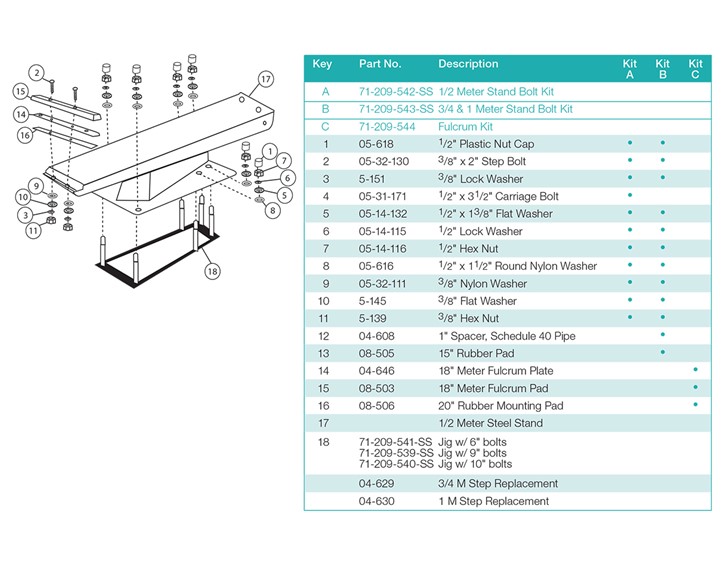

  • Thumbnail for Steel Meter Stand Exploded View

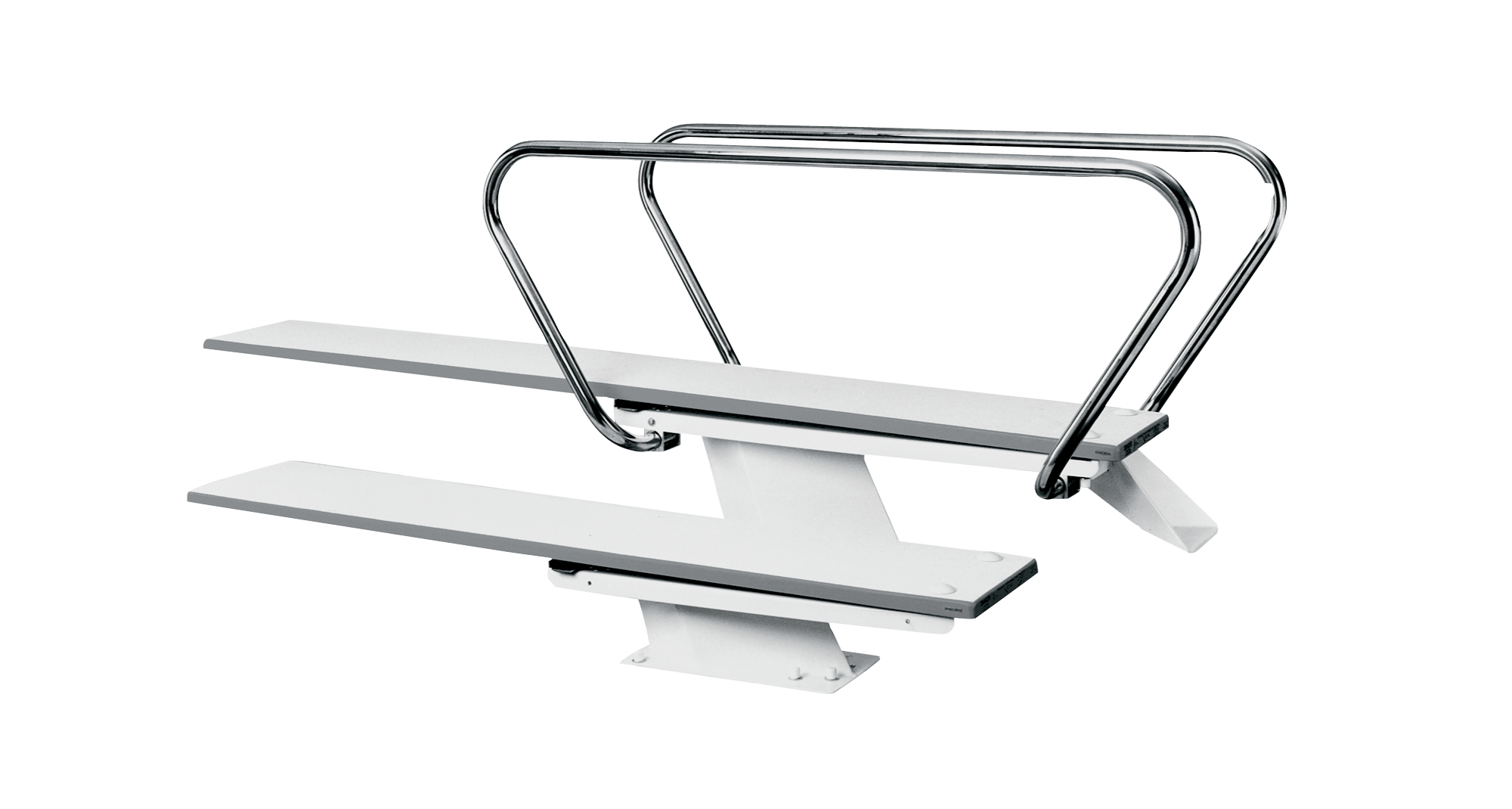

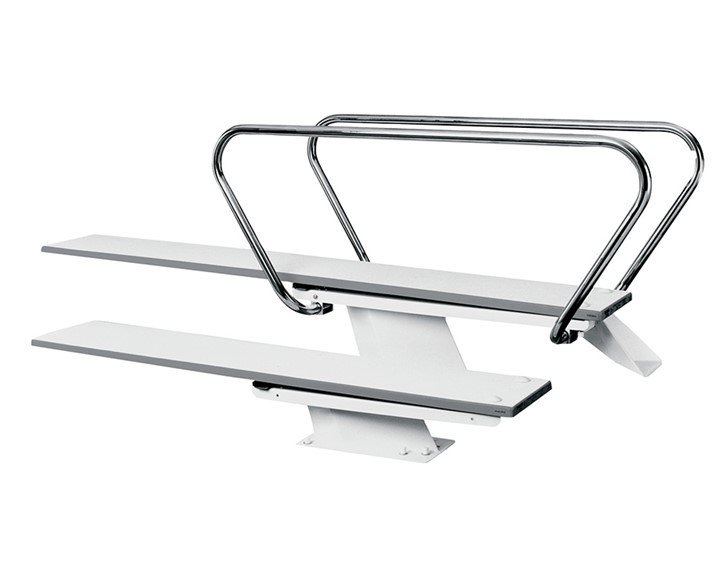

Steel Meter Diving Stands

Product Description

The Steel Meter stand comes in three sizes ranging from 1/2 meter to 1 meter in height. Although ideal for commercial applications that require a strong and durable diving tower, the 1/2 meter size is also appropriate for residential pools where the diving board gets a lot of activity. The steel, powder coated construction is built to last for years with minimal maintenance. Board length will be determined by size and type of pool. Handrails are required for 3/4 and 1 Meter models and are sold separately



Specifications: 1/2 Meter accommodates 8' and 10' boards. 3/4 Meter accommodates 10' and 12' boards. 1 Meter accommodates 10' and 12' boards. Diving boards are sold separately.

Part Number(s): 70-209-501, 70-209-502, 70-209-510, 70-209-512, 70-209-520, 70-209-522, 68-209-2582

Shipping Dimensions:

1/2 Meter Stand 8' Board: 118 lbs. 45"L x 18"W x 14"H
1/2 Meter Stand 10' Board: 137 lbs. 58"L x 18"W x 14"H
3/4 Meter Stand 10' Board: 173 lbs. 58"L x 23"W x 18"H
3/4 Meter Stand 12' Board: 197 lbs. 67"L x 23"W x 18"H
1 Meter Stand 10' Board: 203 lbs. 57"L x 31"W x 18"H
1 Meter Stand 12' Board: 225 lbs. 67"L x 31"W x 18"H
