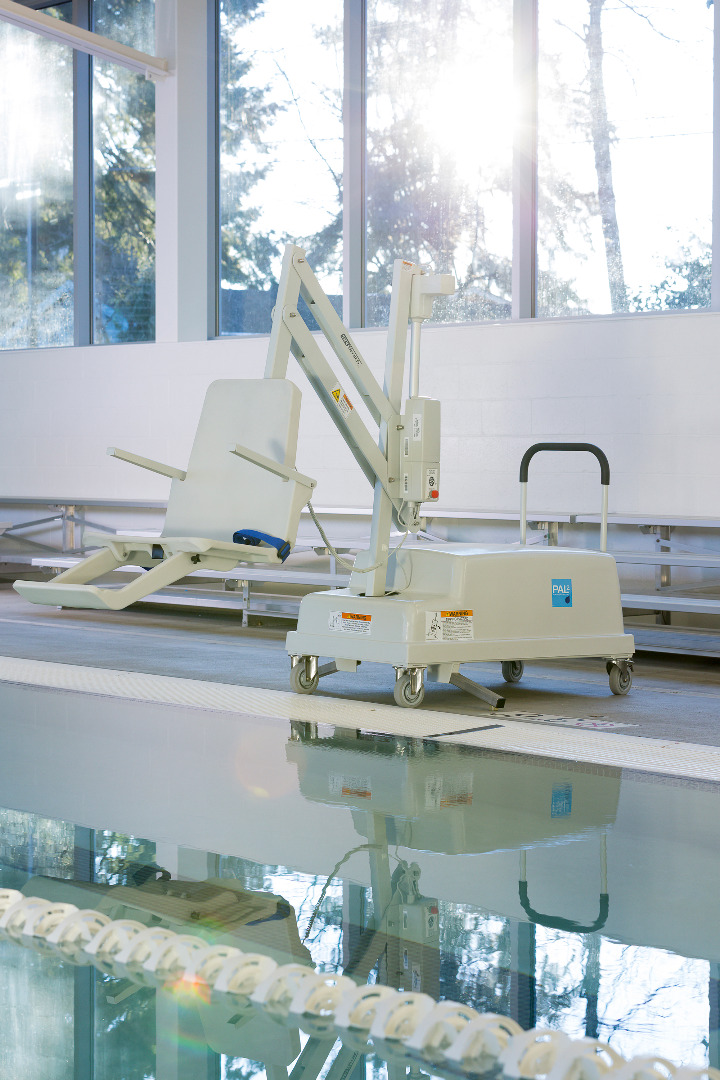

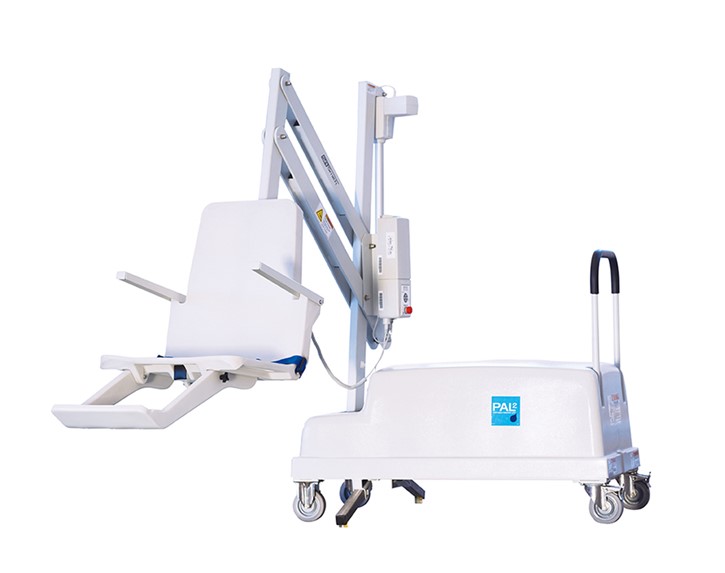

• Thumbnail for PAL2 Pool Lift

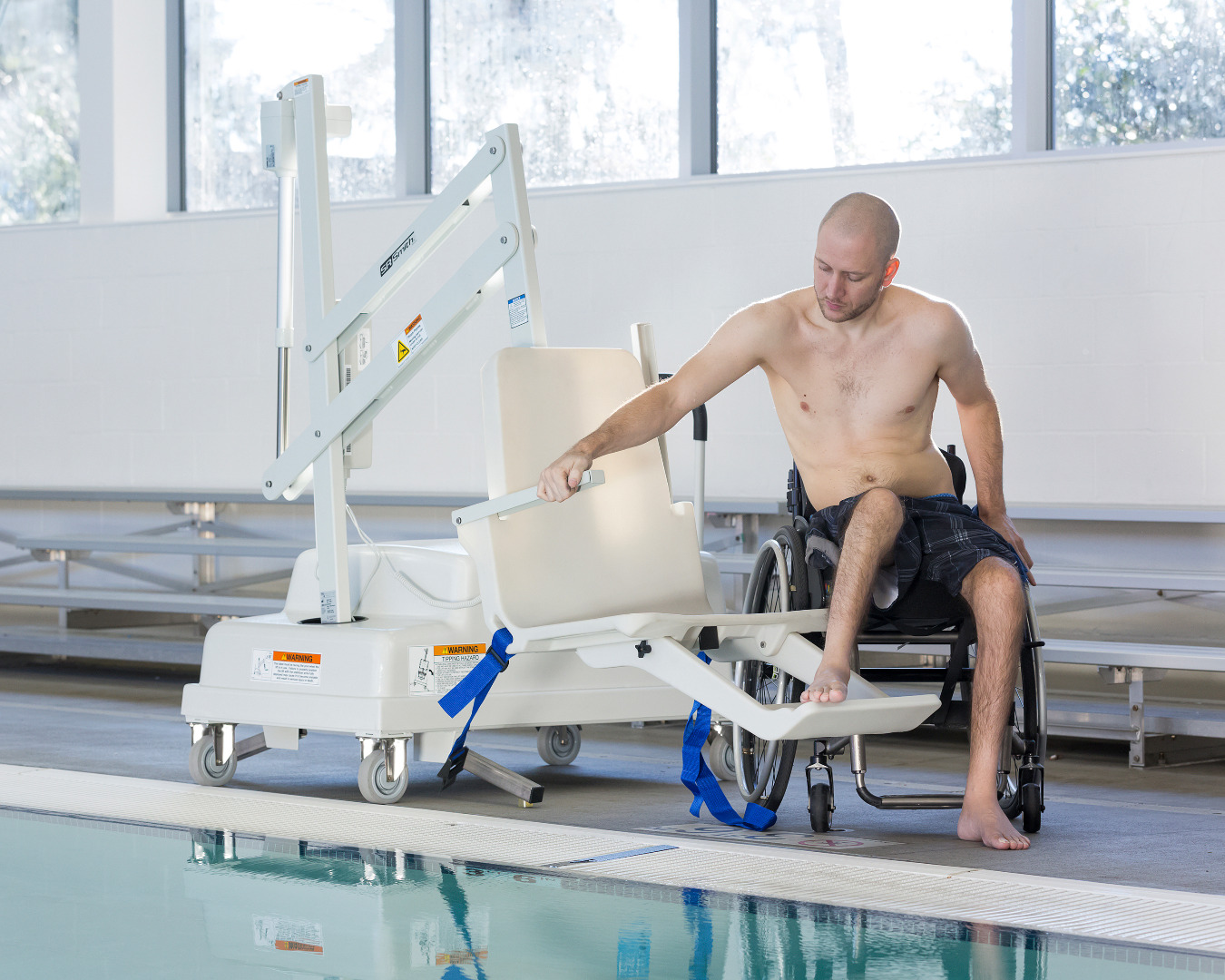

  • Thumbnail for PAL2 Pool Lift with Man

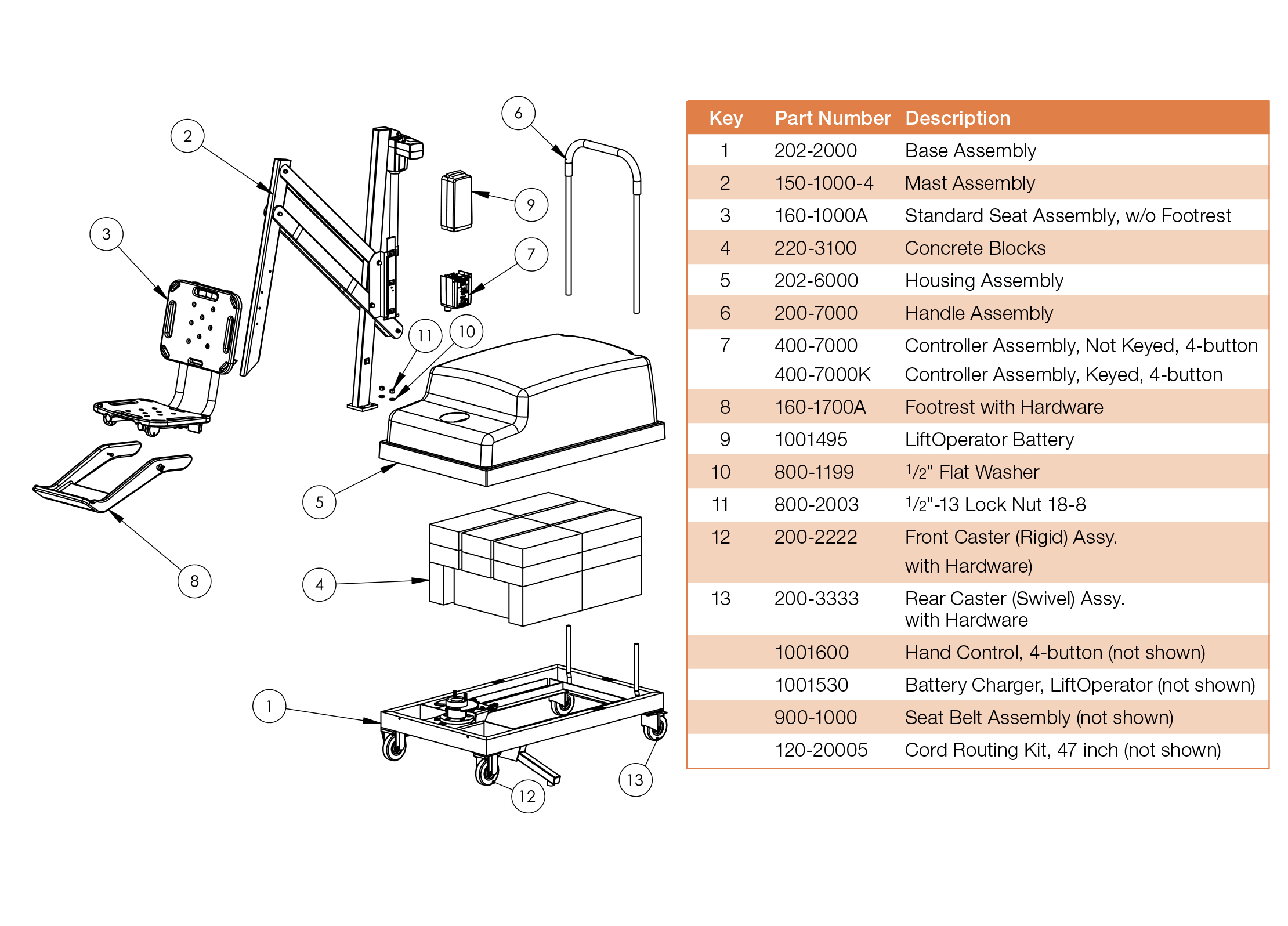

  • Thumbnail for PAL2 Pool Lift Exploded View

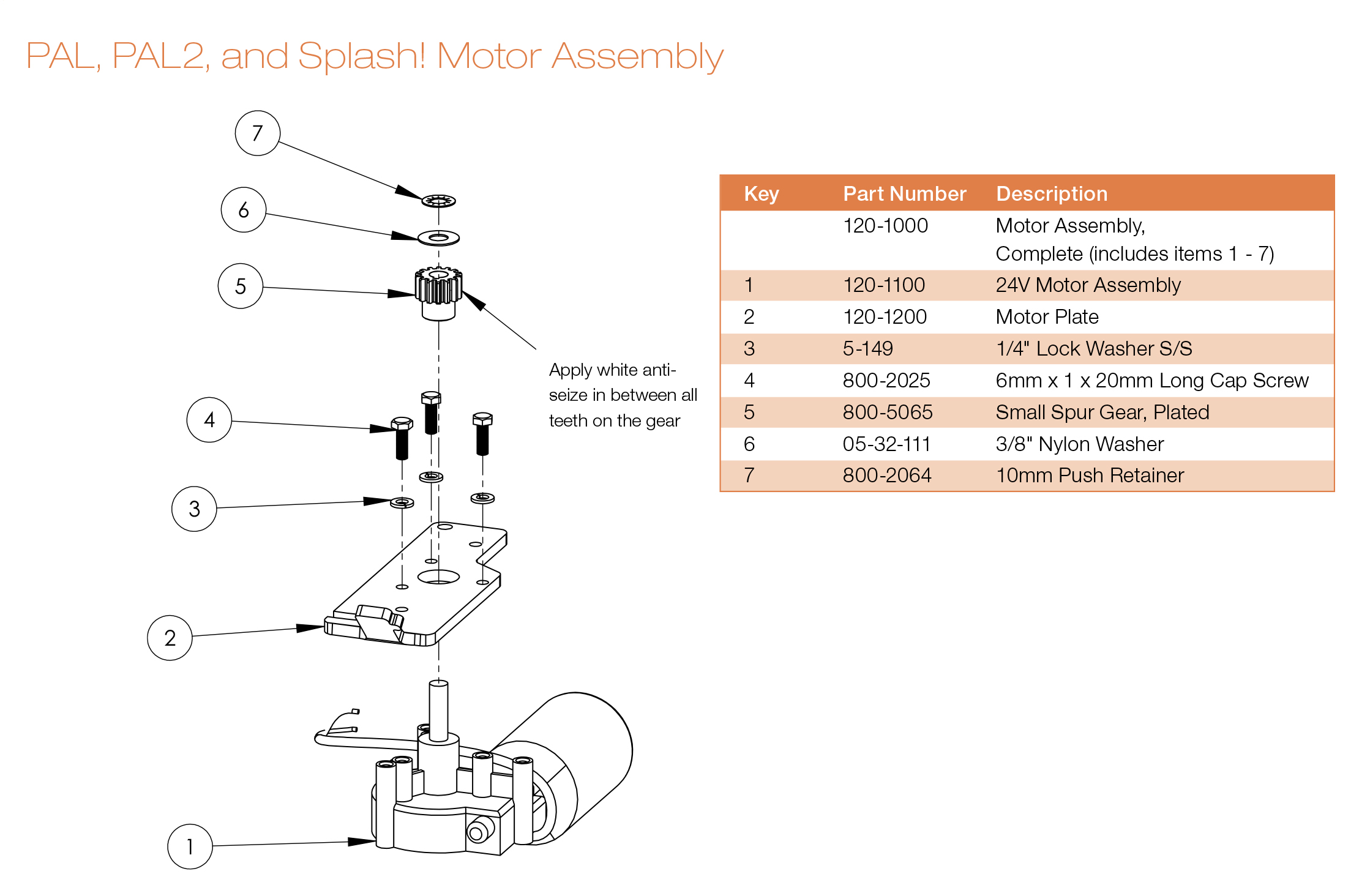

  • Thumbnail for PAL2 Pool Lift Motor Assembly

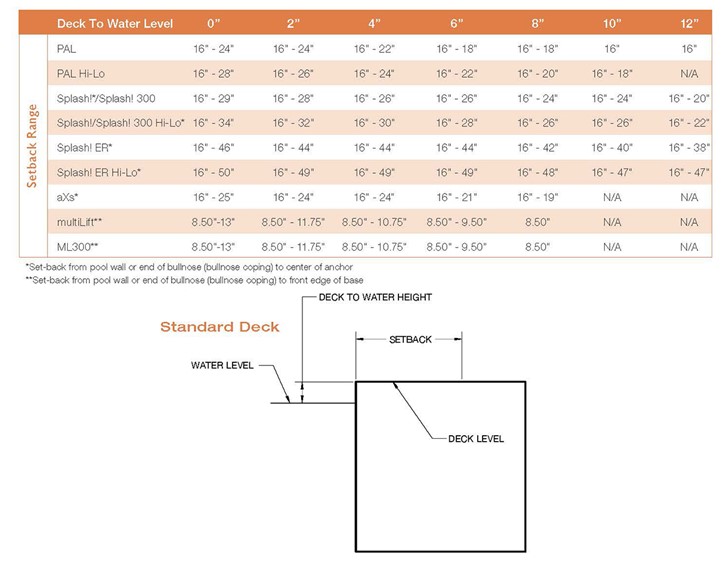

  • Thumbnail for Pool Lift Setback Chart

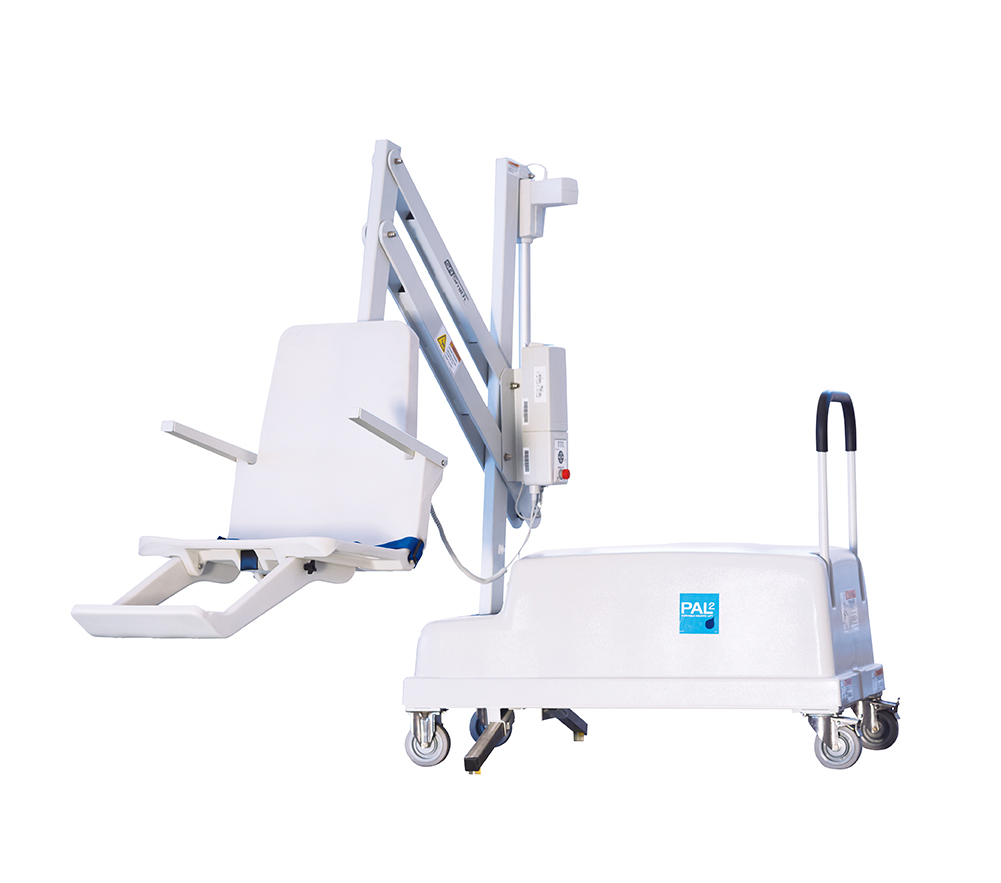

PAL2 Pool Lift

Product Description

The PAL2 includes all the great features of our original PAL pool lift, with a modernized look and durable matte finish.  It is a portable, free-standing pool lift that comes with the PAL Secure-It Kit so that it can be fixed to the deck.  Standard features include the LiftOperator® Intelligent Control (mounted on the mast), a 24-volt rechargeable battery, waterproof hand control, footrest and seatbelt assembly.

Specifications: 300 pound lifting capacity, and 240 degree rotation. Powder-coated stainless steel and aluminum. 3rd party tested and verified ADA compliant.

Part Number(s): 202-0000

Shipping Dimensions:

1200 lbs. 40"L x 49.5"W x 57"H

Certifications

Thumbnail for ADACompliant

ADA Compliant

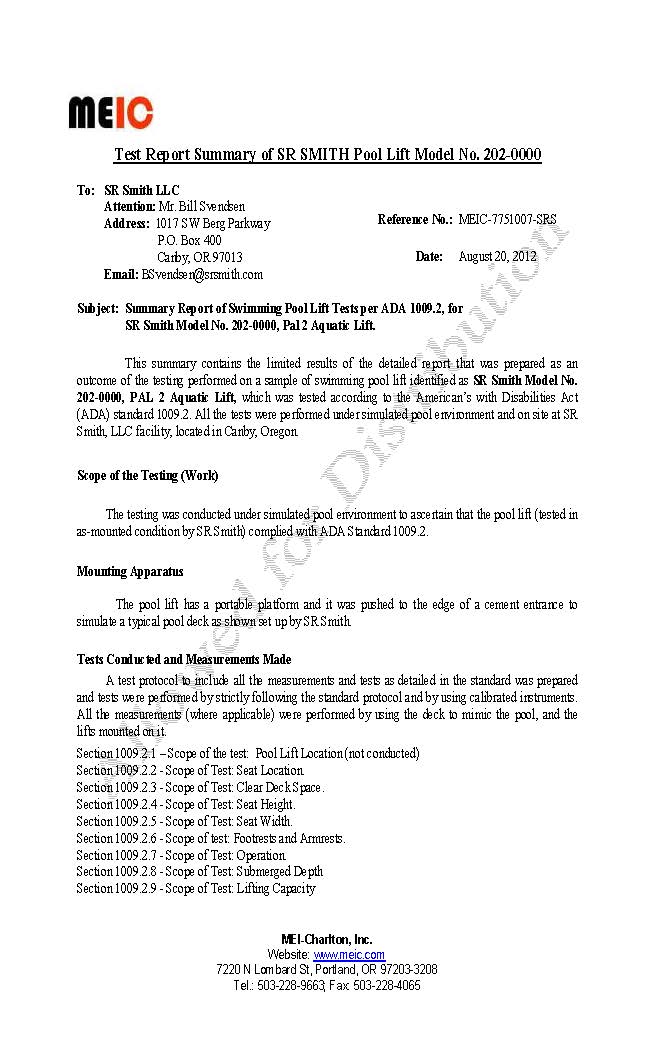

Independently tested and verified by a third-party to be compliant with the 1009.2 Pool Lifts of the ADA Guidelines.

FAQs

  • Q:

    What is the difference between a "portable" lift and a "fixed" lift?

    The real issue is not whether a lift is "portable" versus "fixed," but rather whether a lift is "fixed" versus "non-fixed." A fixed lift means that the lift is attached to the pool deck or apron in some way. A non-fixed lift means that it is not attached in any way. Therefore, a portable lift that is attached to the pool deck would be considered a fixed lift. Thus, owners of portable lifts can fully comply with the access requirements by affixing their lifts to the pool deck or apron.

  • Q:

    What is the Department of Justice's approach to ensure compliance with the ADA regulation pertaining to pool lifts?

    As a general matter, the Department favors voluntary compliance with the ADA from covered entities. The Department seeks collaborative approaches. To achieve these objectives, the Department has a robust outreach and technical assistance program designed to assist businesses and State and local governments to understand their obligations under the ADA.
