Product Description

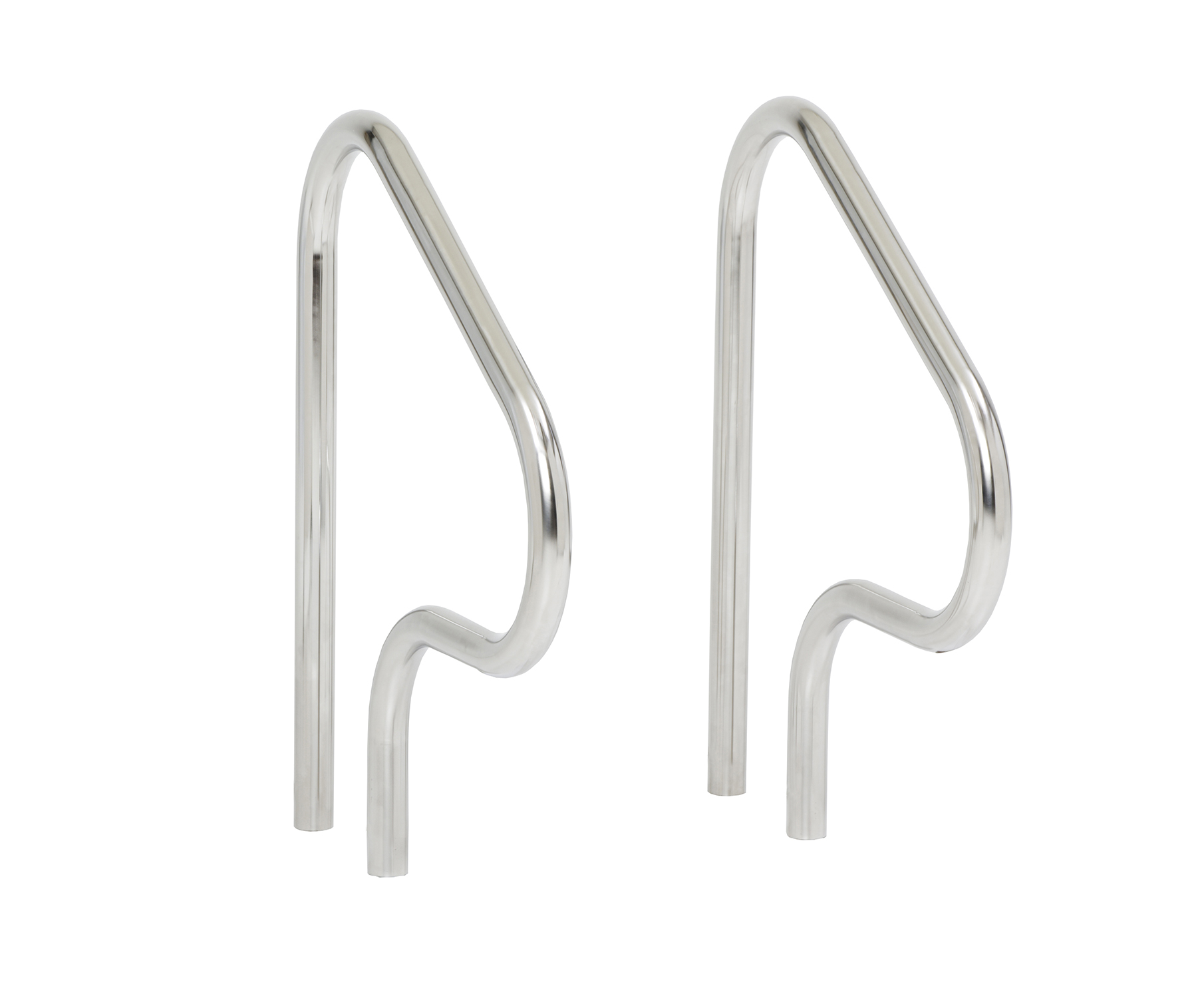

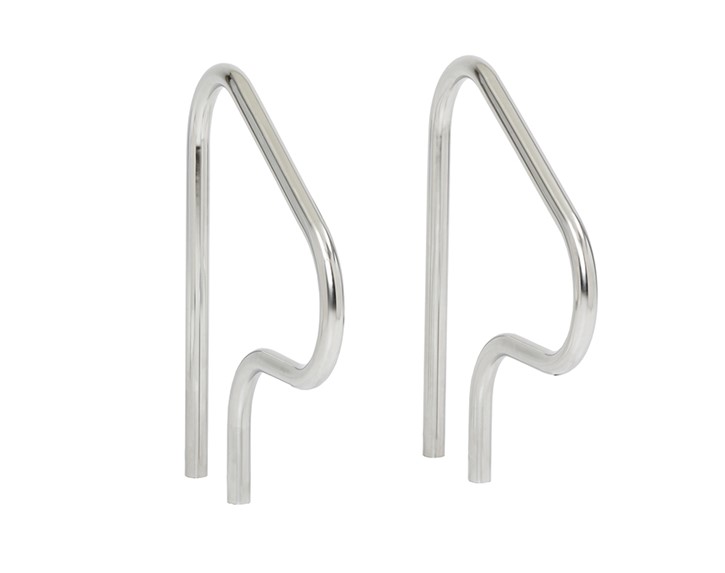

Figure 4 handrails are constructed from high-quality stainless steel, with the option of powder-coating or vinyl-coating for an added layer of protection. Commercial Figure 4 handrails are available in other Powder-Coated or SealedSteel® finishes as custom orders. Please reach out to customercare@srsmith.com to confirm details.
Specifications: Tubing: 1.50” OD in .120” wall thickness and 1.90” OD in .065”, .109” or .145” wall thickness. Type: 304 or 316L stainless steel. Setback: 30-inch and 26-inch models available. All Commercial Figure 4 rails are 35 inches in height.
Part Number(s): .065" OD: 10179; .109" OD: 10180; .145" OD: 10181; .120" OD: 12053
Shipping Dimensions:
24-48 lbs. 39"L x 32"W x 4"H
Product Resources
-
SRS-621 Figure 4 Handrail 1.9in x 26.pdf(pdf)
-
SRS-614 Figure 4 Handrail 1.5in x 30.pdf(pdf)
-
SRS-611 Figure 4 Handrail 1.9in x 30 .pdf(pdf)
-
SRS-622 Figure 4 Handrail 1.5in x 26.pdf(pdf)
-
SRS-621 Fig. 4 - 26 in. x 1.90.dwg(dwg)
-
SRS-611 - Fig. 4 1.90.dwg(dwg)
-
SRS-622 Fig. 4 - 26 in. x 1.50.dwg(dwg)
-
SRS-614 Fig. 4 1.50.dwg(dwg)
