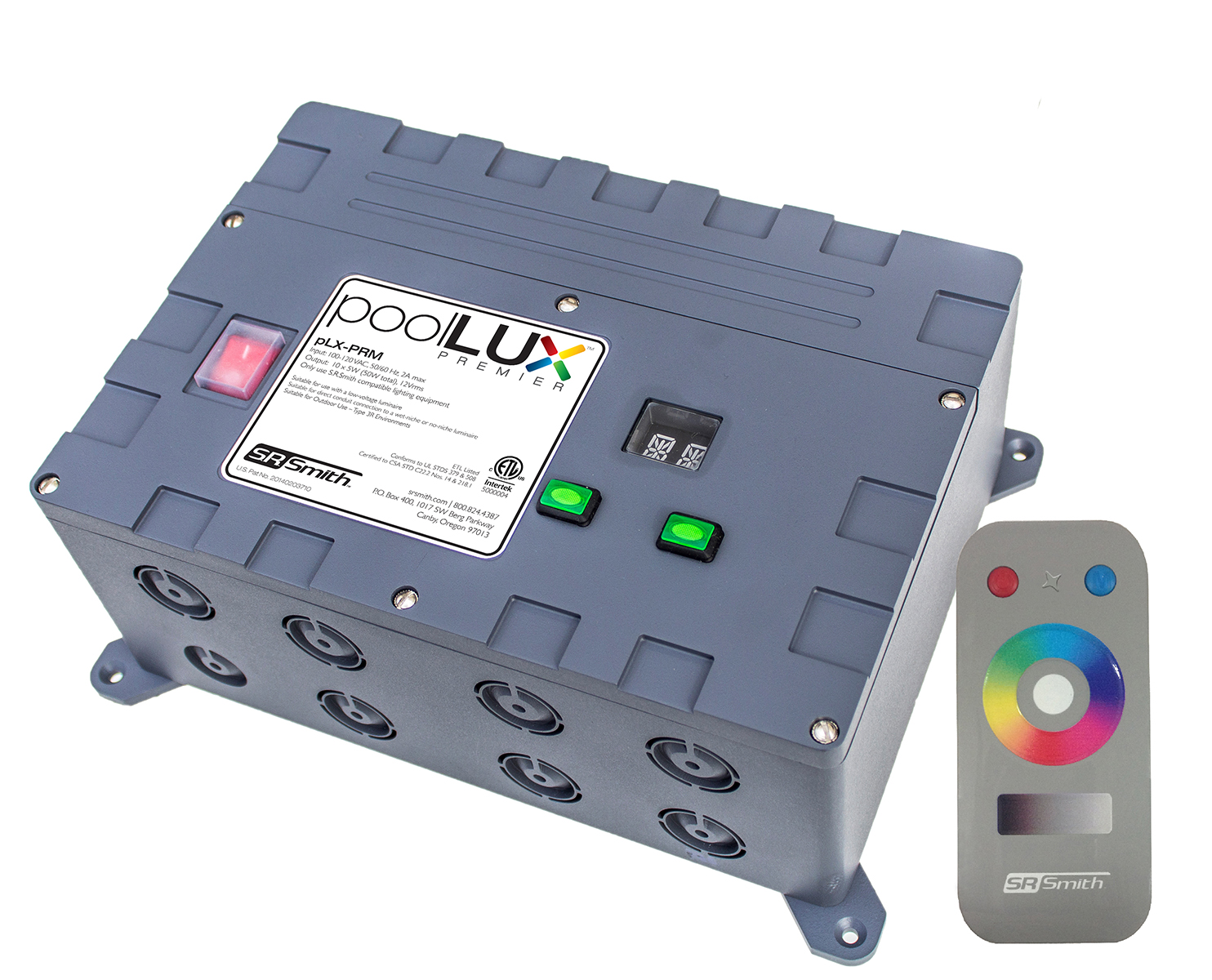

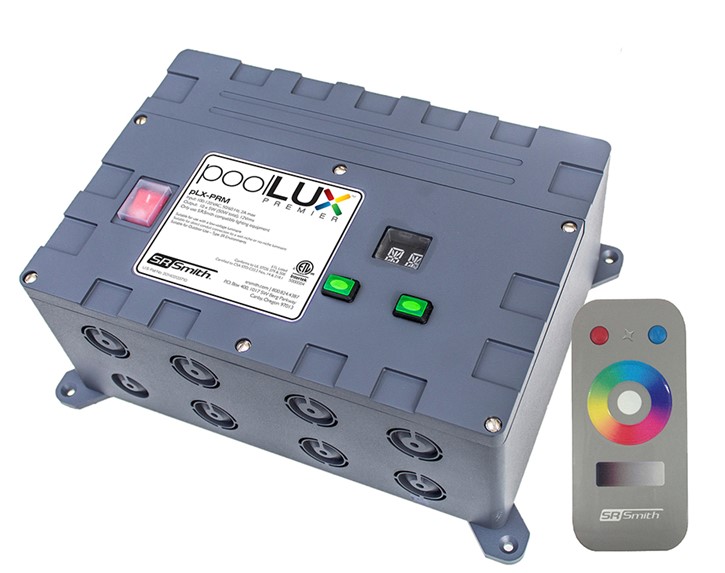

poolLUX^™ Premier Pool Lighting System

Key Features

• Works exclusively with S.R.Smith LED lights
• Extended range (100’ Line of Sight) Wireless remote with color selection wheel and dimming bar
• (6) standard colors and (2) shows via on/off power toggle
• Up to (49) color variations via color selection wheel
• Multiple brightness (dimming) options available - (4) via wireless remote dimming bar and (15) available via the control panel dimming button
• (10) wiring station system* with a built in 70W power supply (*7W max per station)
• Corrosion resistant (NEMA 3R), sound dampening housing
• (6) low-voltage and (2) line-voltage combination knockouts (3/4” or 1”)
• Onboard dry contact option for limited 3rd party system interface – Contact factory for details
• ETL Listed - Conforms to UL379 (Pool, Spa and Fountain Power Unit Standard)
• Certified to CSA C22.2#218.1
• Two-year warranty

Specifications: Durable polycarbonate housing - corrosion resistant.

Part Number(s): pLX-PRM, 2TR-PLX-PRM, 3TR-PLX-PRM, PLX-PRM, 2KE-pLX-PRM, 3KE-pLX-PRM, 2ML-pLX-PRM, 3ML-pLX-PRM
