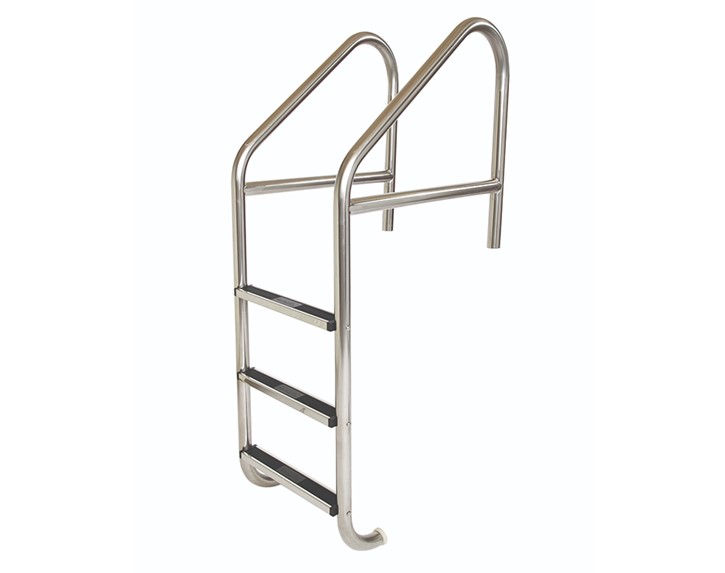

• Thumbnail for Crossbrace Commercial Ladder

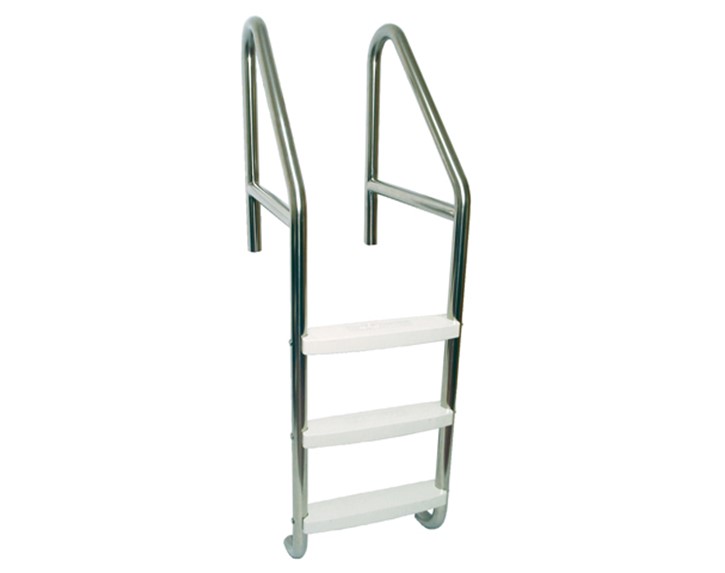

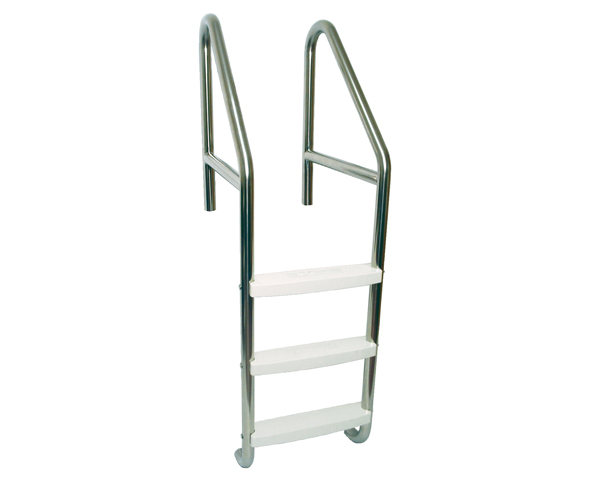

  • Thumbnail for Commercial Crossbrace Plastic
  • Thumbnail for Polished Stainless Steel
  • Thumbnail for Crossbrace Commercial Ladder
  • Thumbnail for Commercial Crossbrace Plastic
  • Thumbnail for Polished Stainless Steel

Product Description

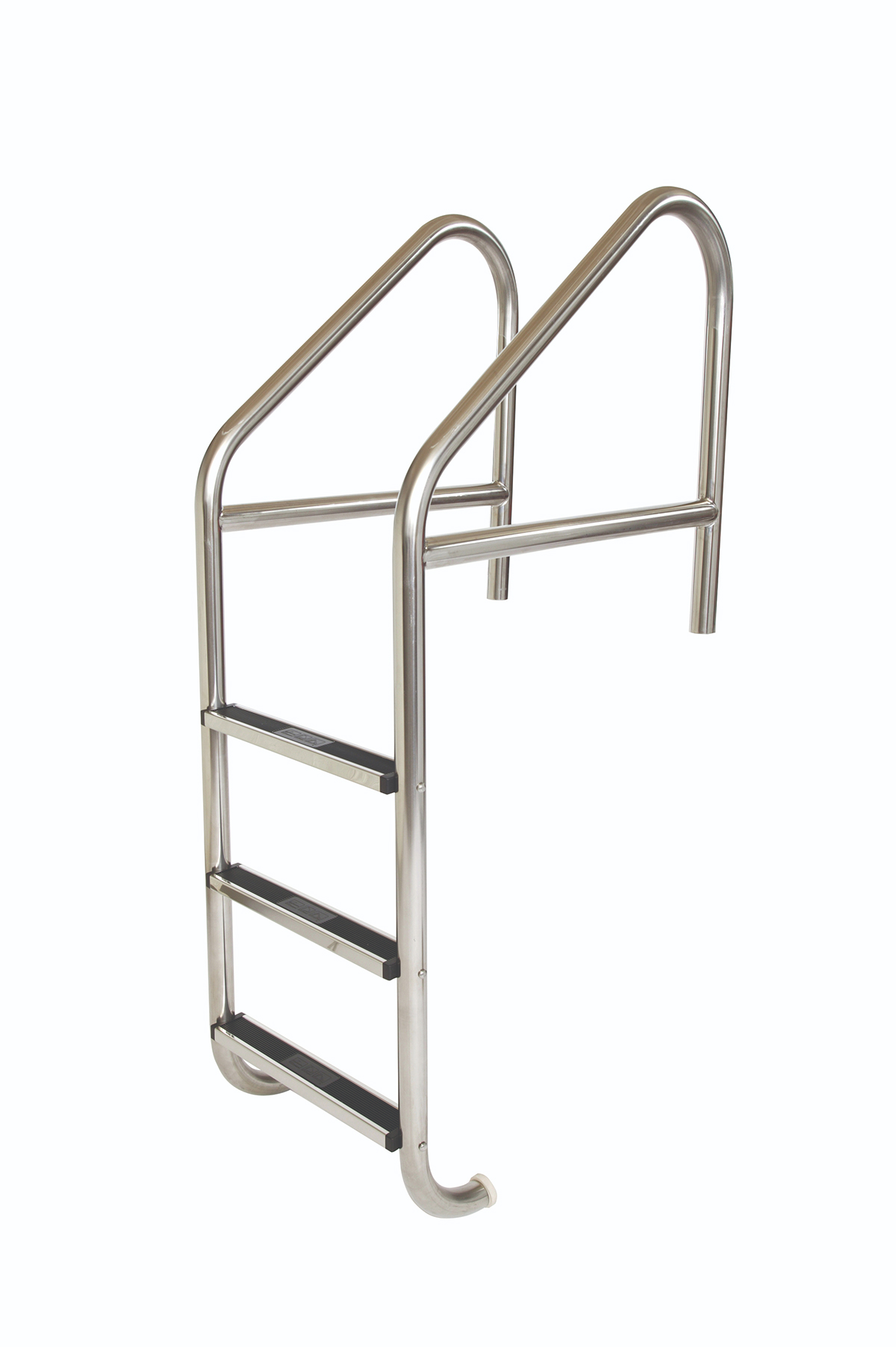

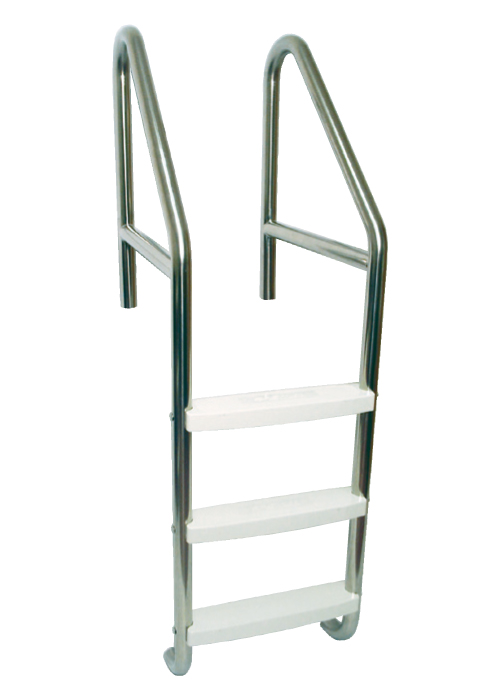

Standard Crossbrace Plus Commercial Ladders are made from thick stainless steel tubing, and are suitable for heavy duty use in commercial aquatic facilities. These ladders feature a crossbrace for added stability, with either durable plastic or stainless steel treads. Standard Crossbrace Plus Commercial Ladders are available in other Powder-Coated or SealedSteel® finishes as custom orders. Please reach out to customercare@srsmith.com to confirm details.

Part Numbers:

PLASTIC TREAD
23" 29" 35"

2-Step .065": 10073
2-Step .109": 10074
2-Step .145": 10075
3-Step .065": 10076
3-Step .109": 10077
3-Step .145": 10078
4-Step .065": 10079
4-Step .109": 10080
4-Step .145": 10081
5-Step .065": 10082
5-Step .109": 10083
5-Step .145": 10084

2-Step .065": 10085
2-Step .109": 10086
2-Step .145": 10087
3-Step .065": 10088
3-Step .109": 10089
3-Step .145": 10090
4-Step .065": 10091
4-Step .109": 10092
4-Step .145": 10093
5-Step .065": 10094
5-Step .109": 10095
5-Step .145": 10096

2-Step .065": 10097
2-Step .109": 10098
2-Step .145": 10099
3-Step .065": 10100
3-Step .109": 10101
3-Step .145": 10102
4-Step .065": 10103
4-Step .109": 10104
4-Step .145": 10105
5-Step .065": 10106
5-Step .109": 10107
5-Step .145": 10108

STAINLESS STEEL TREAD
23" 29" 35"

2-Step .065": 10109
2-Step .109": 10110
2-Step .145": 10111
3-Step .065": 10112
3-Step .109": 10113
3-Step .145": 10114
4-Step .065": 10115
4-Step .109": 10116
4-Step .145": 10117
5-Step .065": 10118
5-Step .109": 10119
5-Step .145": 10120

2-Step .065": 10121
2-Step .109": 10122
2-Step .145": 10123
3-Step .065": 10124
3-Step .109": 10125
3-Step .145": 10126
4-Step .065": 10127
4-Step .109": 10128
4-Step .145": 10129
5-Step .065": 10130
5-Step .109": 10131
5-Step .145": 10132

2-Step .065": 10133
2-Step .109": 10134
2-Step .145": 10135
3-Step .065": 10136
3-Step .109": 10137
3-Step .145": 10138
4-Step .065": 10139
4-Step .109": 10140
4-Step .145": 10141
5-Step .065": 10142
5-Step .109": 10143
5-Step .145": 10144

Specifications: Tubing: 1.50" or 1.90". OD, .065", .109" or .145" wall. Type: 304 stainless steel. Number of treads: 2, 3, 4, or 5. 6" radius bends.

Shipping Dimensions:

30-86 lbs. 61"-76"L x 29"-40"W x 2"H
