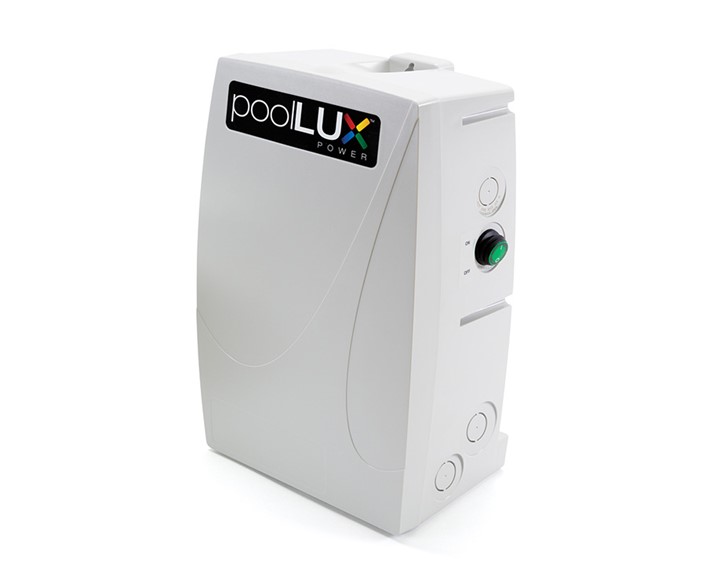

• Thumbnail for poolLUX Power Transformer

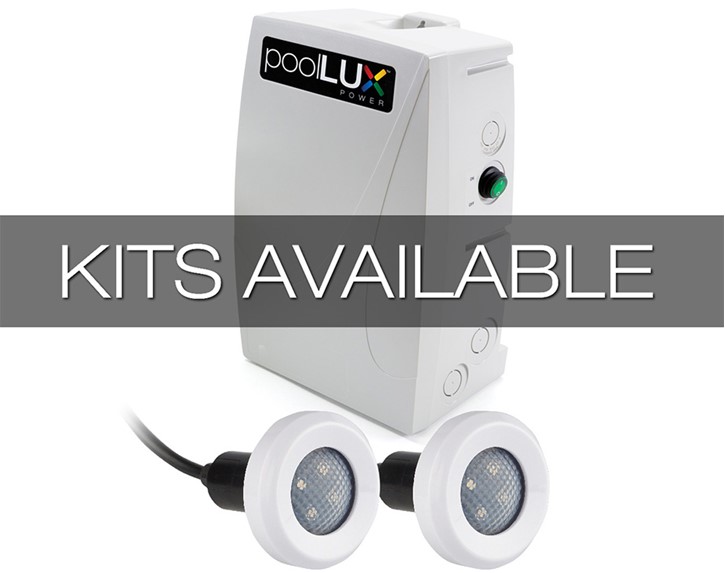

  • Thumbnail for poolLUX Power Transformer Kit

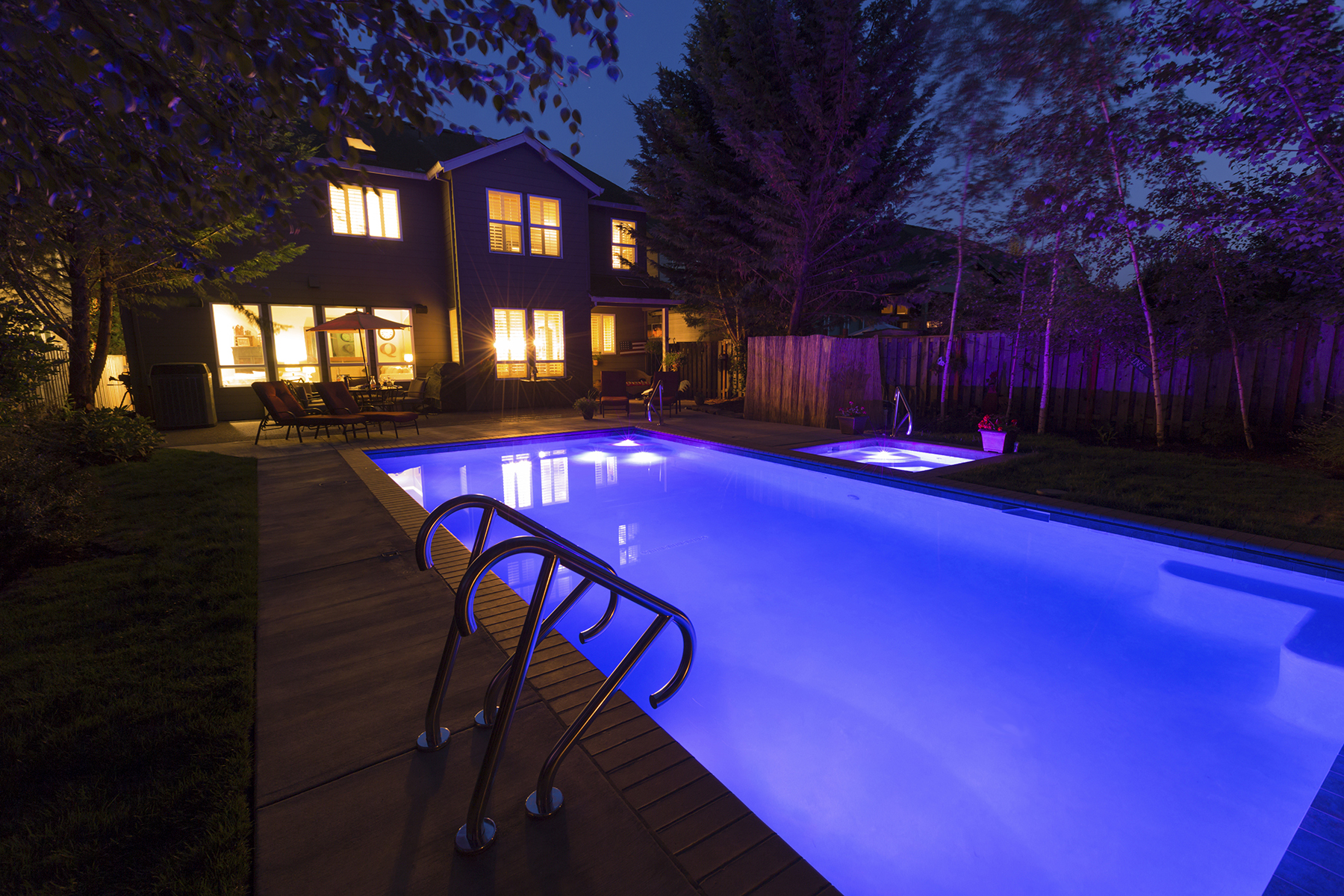

  • Thumbnail for Pool Lighting Environment
  • Thumbnail for Pool Lighting Image

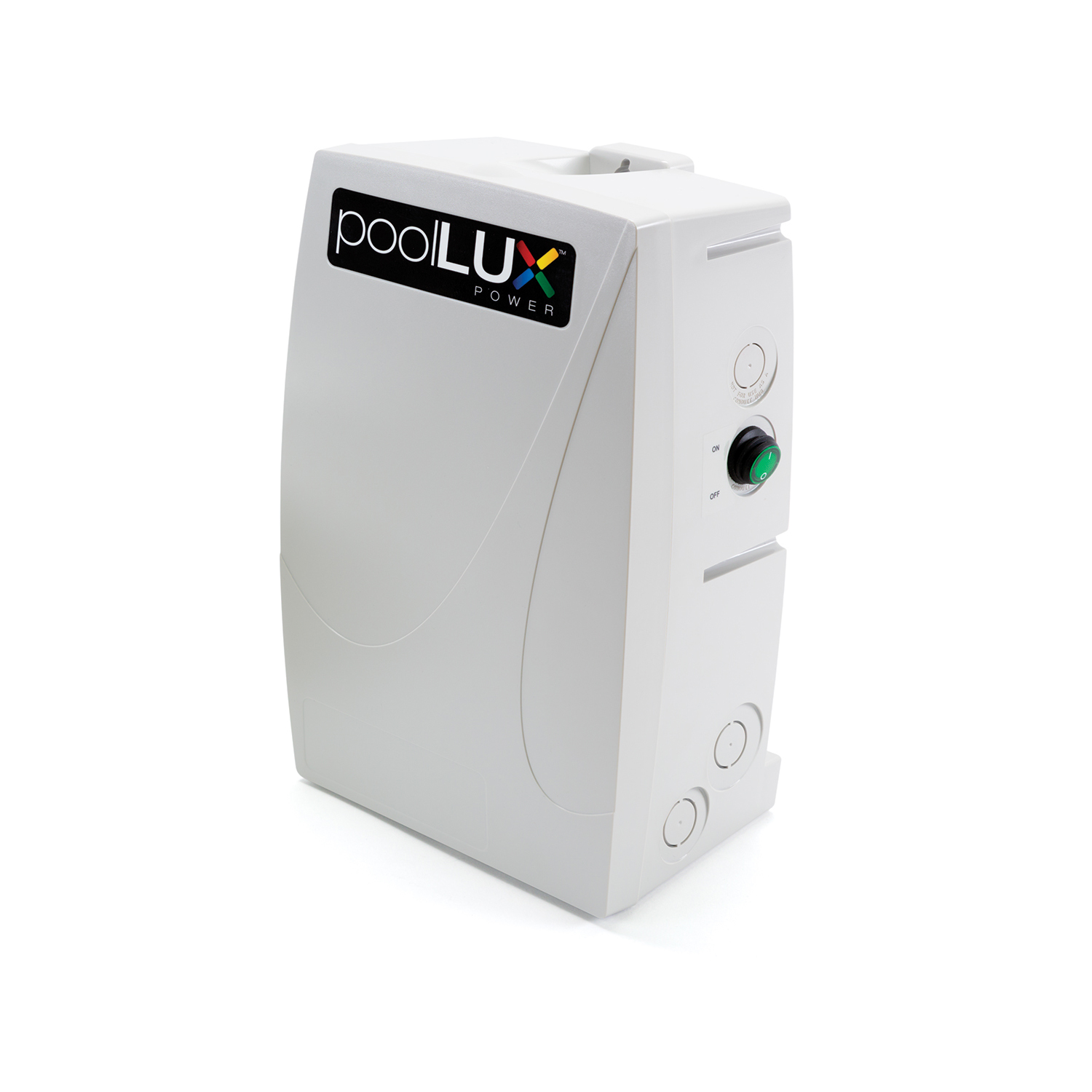

poolLUX Power Transformer

Product Description

The poolLUX™ Power combines a low voltage transformer with switched lighting control.

Key Features

  • 60W or 100W low voltage transformer options
  • External on/off control switch
  • Compatible with S.R.Smith LED lights and other 12VAC power toggle LED lights – S.R.Smith LED lights feature (6) colors and (2) shows
  • Oversized wiring space with convenient terminal strip connections
  • Internal self-resetting thermal fuse to protect against overheating conditions
  • Fast acting replaceable current fuse for safety enhancing short circuit protection
  • Accessible low voltage 12VAC and 13VAC wiring terminals for standard or extended wiring runs
  • Corrosion resistant (NEMA 3R) and sound dampening housing (quiet operation)
  • (4) low-voltage and (4) line-voltage combination knockouts (3/4” or 1”) plus (2) special use knockouts
  • ETL Listed - Conforms to UL379 (Pool, Spa and Fountain Power Unit Standard)
  • Certified to CSA C22.2#218.1
  • Two-year warranty

Specifications: Corrosion resistant polycarbonate housing for harsh pool environments

Part Number(s): pLX-PW60, pLX-PW100, 2TR-pLX-PW60, 3TR-pLX-PW60, 2TR-pLX-PW100, 3TR-pLX-PW100, 2KE-pLX-PW60, 3KE-pLX-PW60, 2KE-pLX-PW100, 3KE-pLX-PW100, 1ML-pLX-PW60, 2ML-pLX-PW60, 3ML-pLX-PW60, 2ML-PLX-PW100, 3ML-PLX-PW100

FAQs

  • Q:

    How many lights can I put on one S.R.Smith poolLUX® Power, Plus, or Plus2 Dual transformer or controller?

    Please see the latest pool lighting configuration guide: Pool Lighting Configuration Guide
