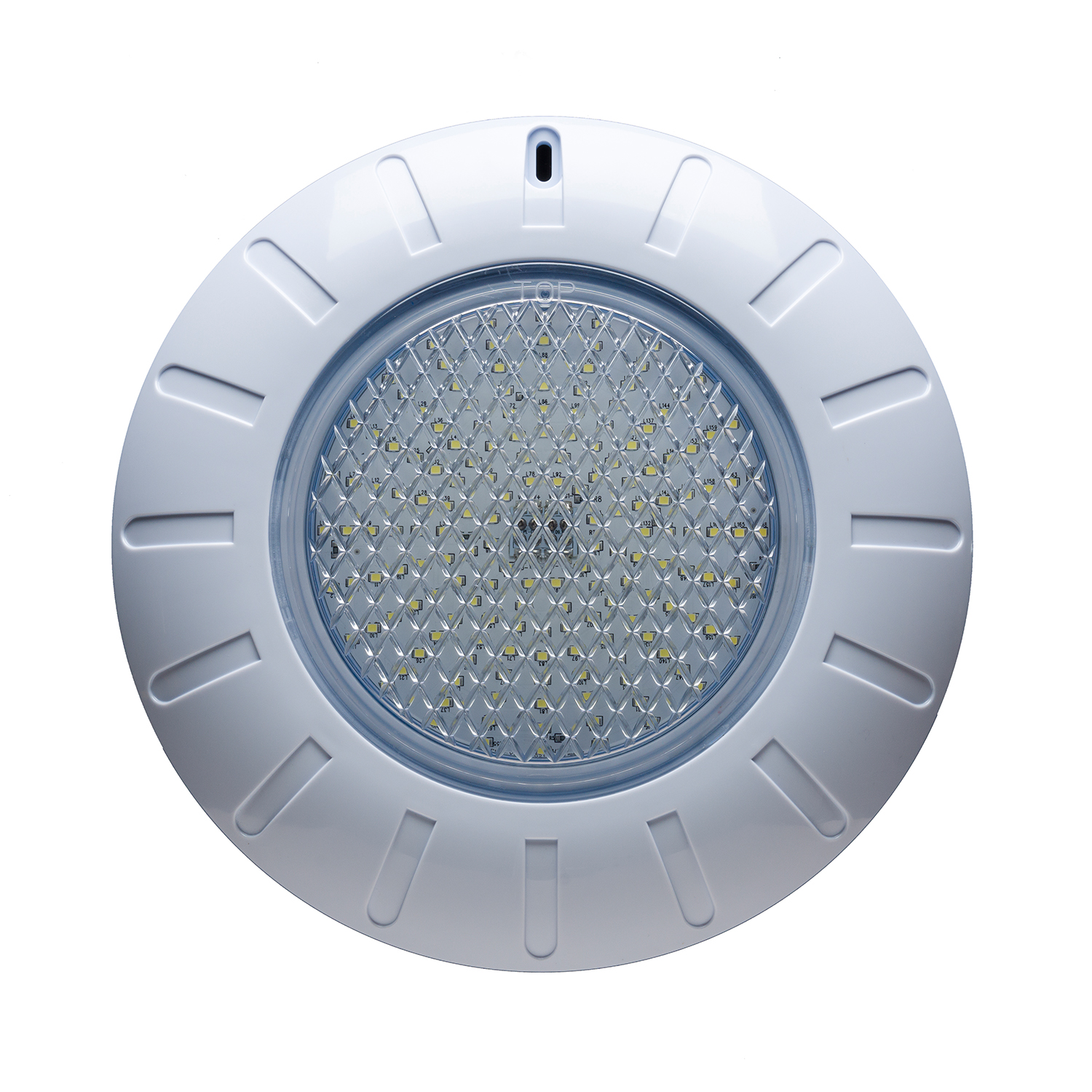

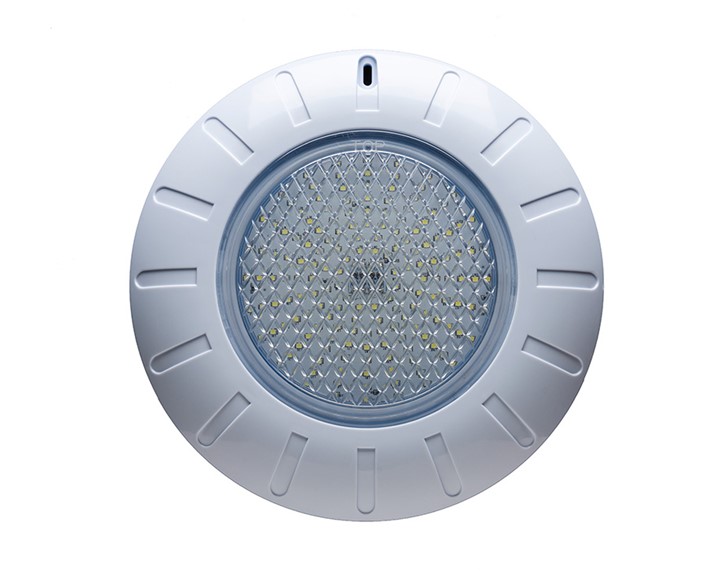

• Thumbnail for keloXL Pool Light Product Front

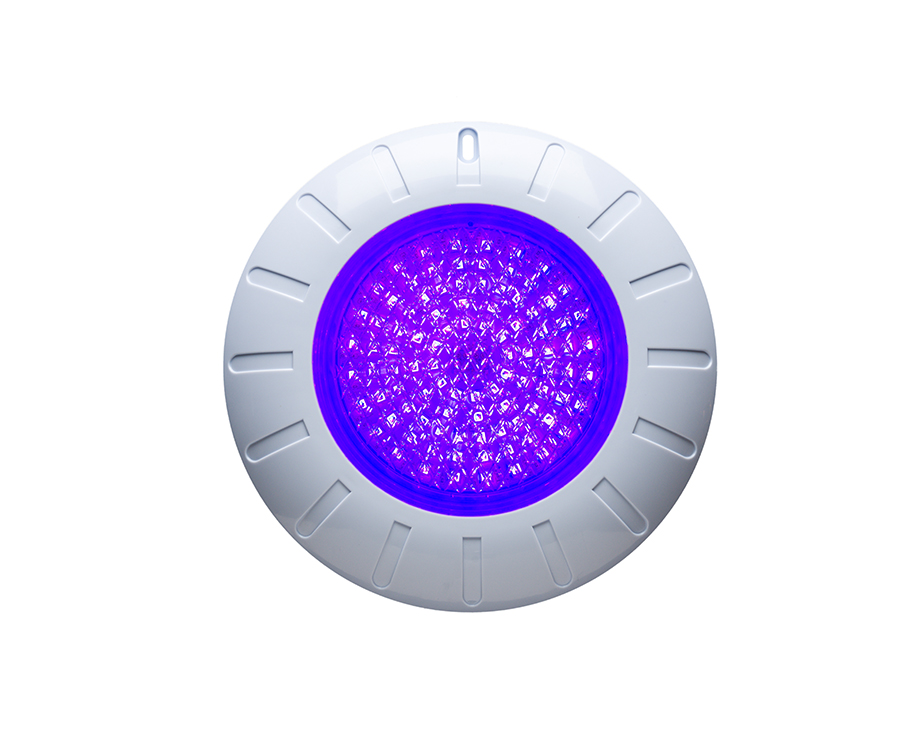

  • Thumbnail for keloXL LED Pool Light in Magenta

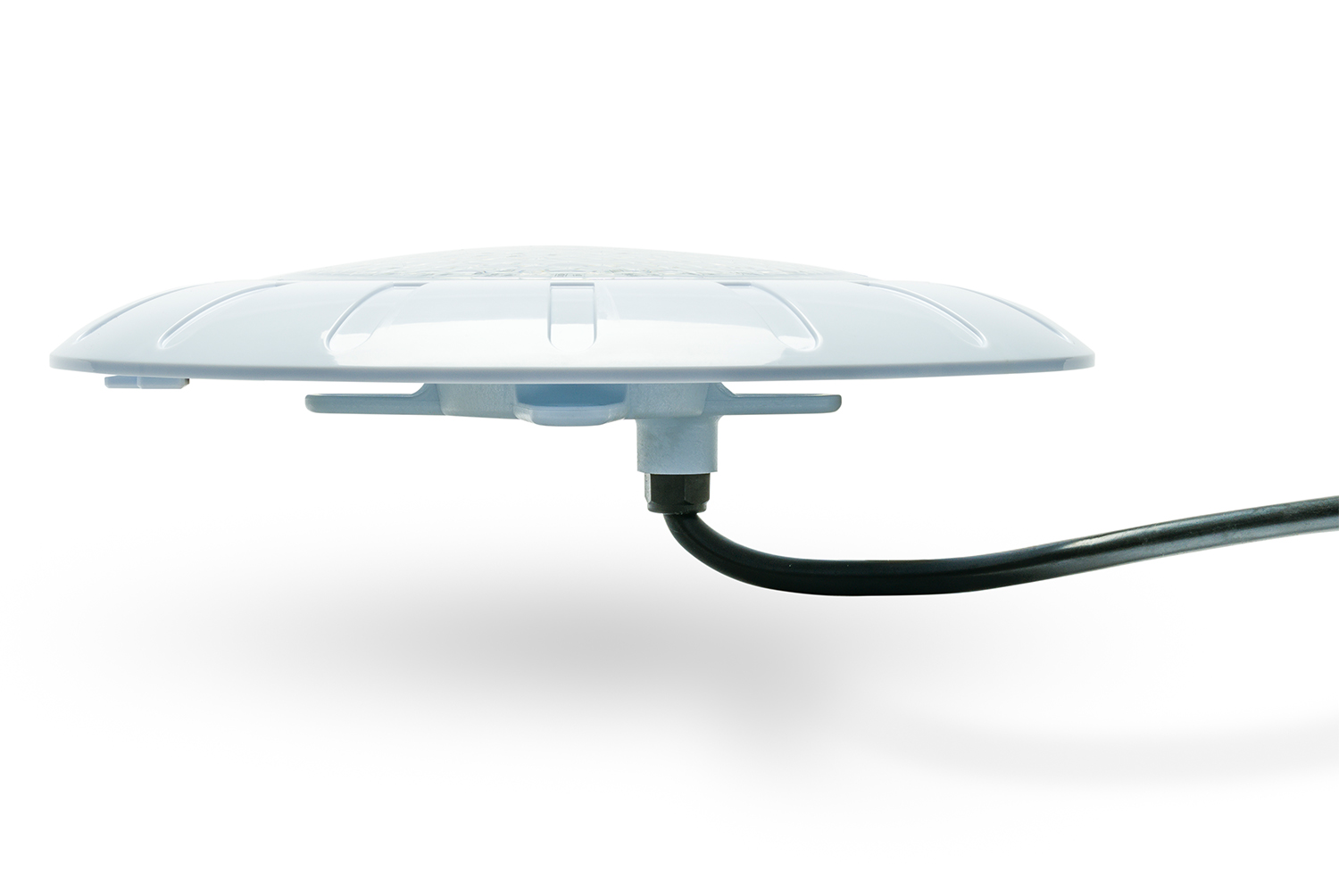

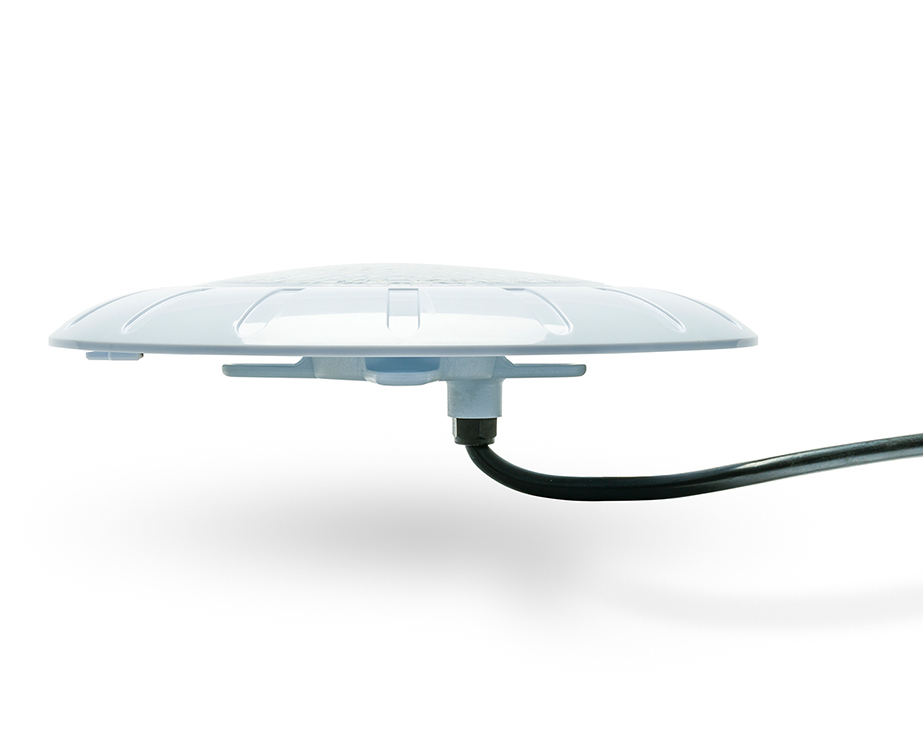

  • Thumbnail for keloXL Pool Light Product Side

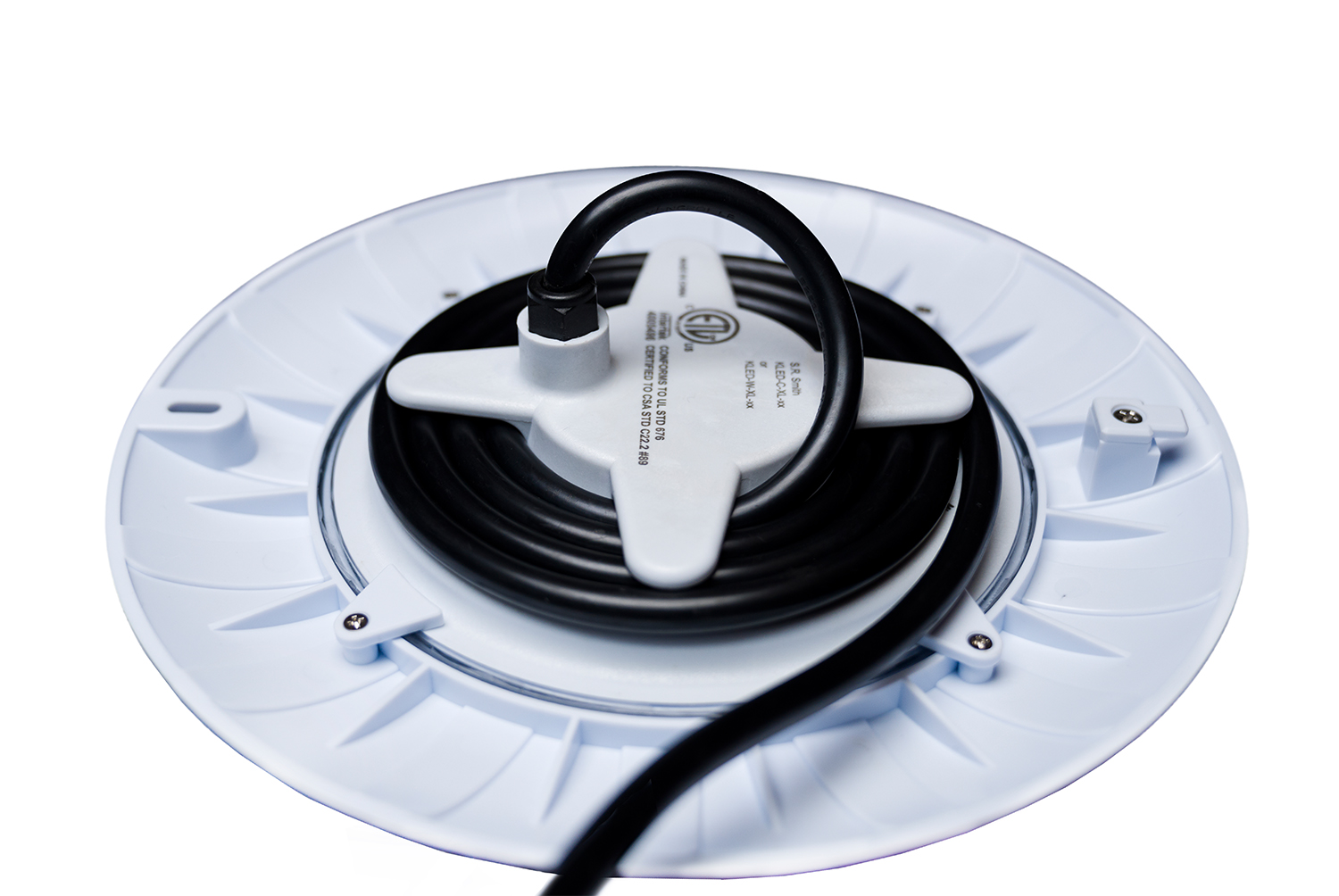

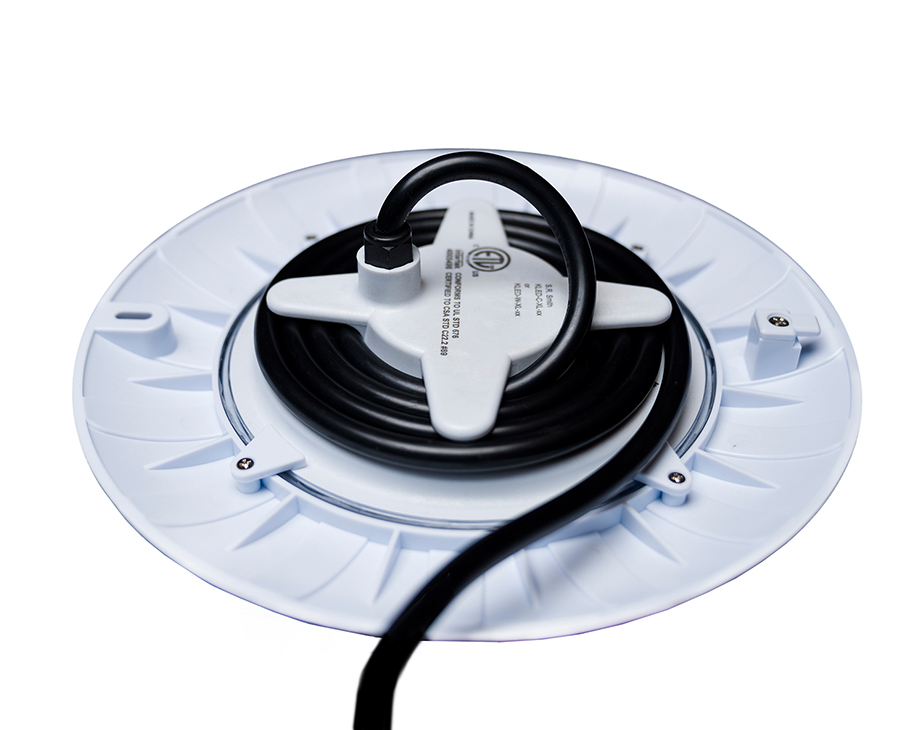

  • Thumbnail for keloXL Pool Light Product Back

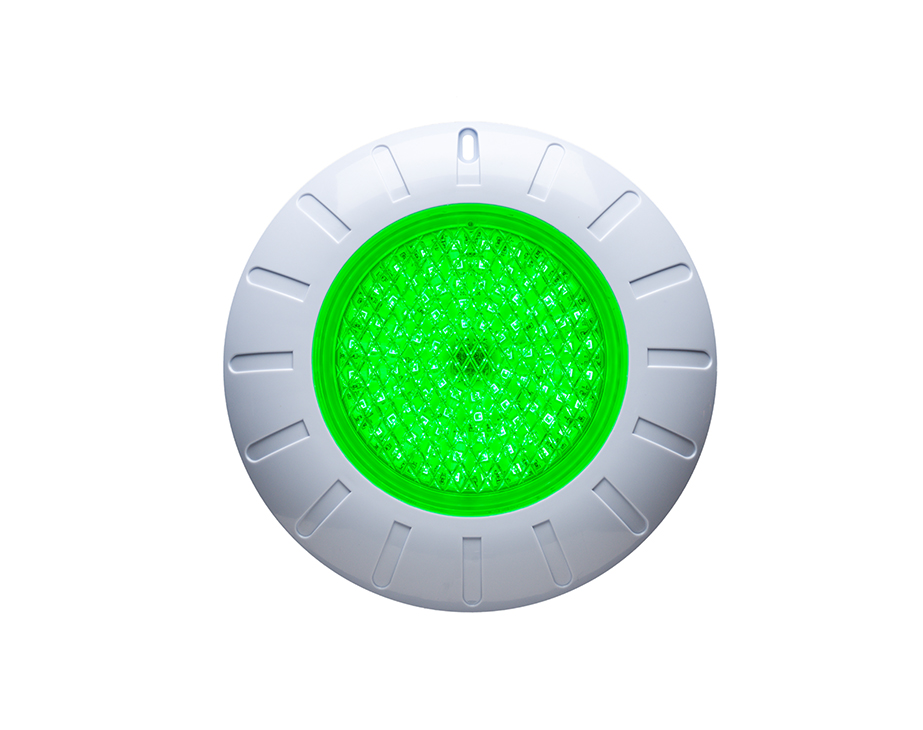

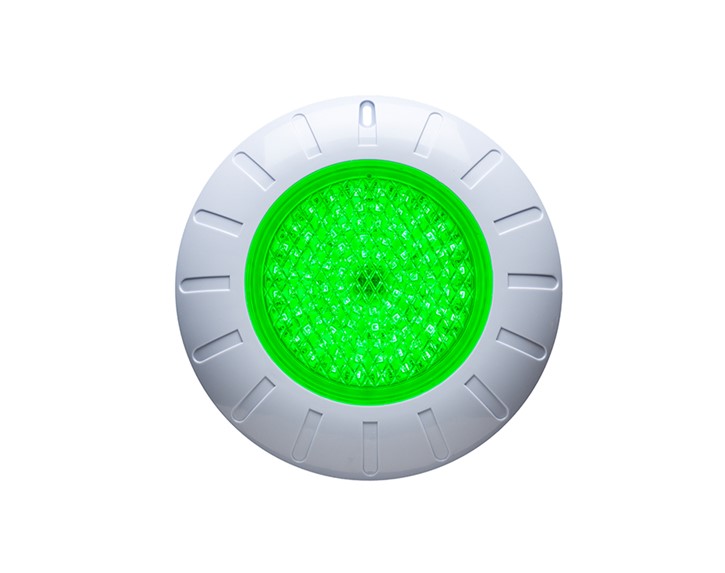

  • Thumbnail for keloXL LED Pool Light in Green

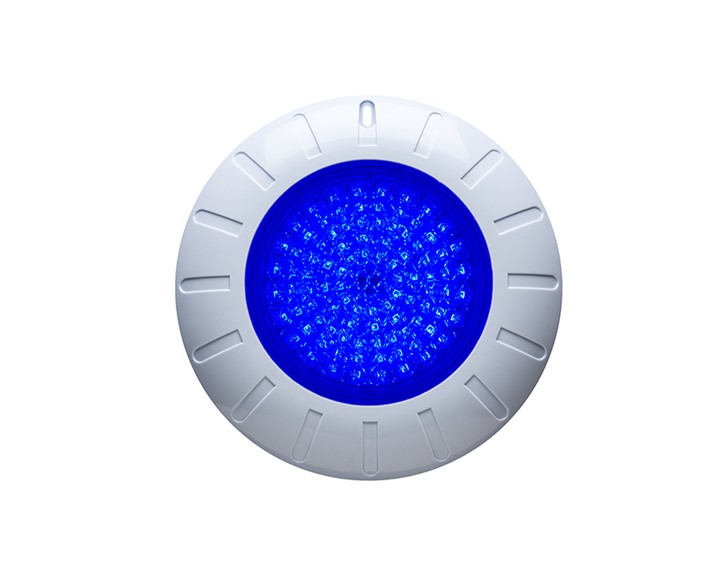

  • Thumbnail for keloXL LED Pool Light in Blue

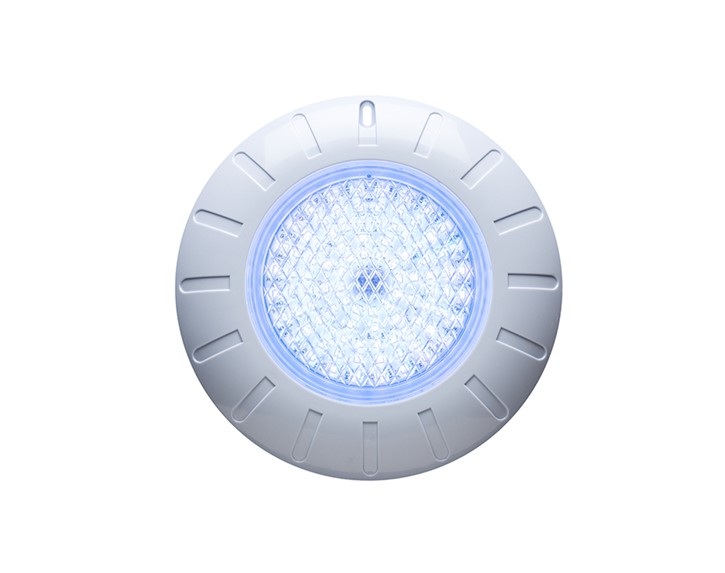

  • Thumbnail for keloXL LED Pool Light in White
  • Thumbnail for LED Pool Light Color Options

keloXL LED Pool Light

Product Description

The kēlo®XL is the first large format (10” Class) niche LED pool light from S.R.Smith.  Designed to fit most industry standard niches, the kēloXL is the ideal replacement option for older pools, as it is designed to fit right into the old niche with little to no modifications needed. Additionally, the kēloXL has a uniquely low profile creating an enhanced aesthetic, a more precise wall washing effect and offers sleek, near flush to wall design that helps prevent light damage.

Key Features

  • Large format LED in-ground pool light
  • RGB color model (38W), White only model (42W) - 2,395 lumen equivalent to 300W incandescent light
  • No bonding or grounding required
  • Low profile, corrosion resistant, sealed design
  • Available in lengths of 80’ and 150’ with built in cord keeper
  • Color functionality - (6) colors (white, blue, green, red, amber, magenta) and (2) light shows
  • 3 year warranty
  • ETL Listed - Conforms to UL676, certified to CSA C22.2 #89
  • Compatible with most S.R.Smith transformers

Part Number(s): KLED-C-XL-80, KLED-C-XL-150, KLED-W-XL-80, KLED-W-XL-150


  • Q:

    How many lights can I put on one S.R.Smith poolLUX® Power, Plus, or Plus2 Dual transformer or controller?

    Please see the latest pool lighting configuration guide: Pool Lighting Configuration Guide
